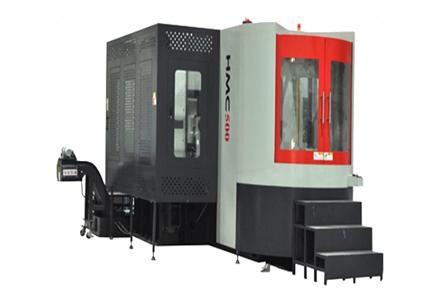

HMC500 Horizontal Machining Center adopts positive T-type structure, integral base, large span double-wall column, three axis adopt imported heavy-duty roller guideway, and the whole machine has high structural rigidity. The machine tool adopts forced cooling screw bearings and forced cooling direct spindle, which strongly ensures the stability of machine tool precision. The machine is equipped with double pallet automatic workpiece exchange system as standard, which can be used for batch multi-surface machining of parts such as box, plate, plate shell, machine base, etc., and is also suitable for finishing machining of various moulds.
|
Item |
HMC500 |
|
|
Travel
|
X-axis (mm) |
850 |
|
Y-axis (mm) |
700 |
|
|
Z-axis (mm) |
800 |
|
|
Distance from the spine end to the center of the work table (mm) |
70-870 |
|
|
Distance from the center of the spine to the top of the tray (mm) |
75-775 |
|
|
Worktable
|
Work table size (mm) |
500 ×5 00 |
|
Scale of work table (Deg) |
360 ×1° |
|
|
Work table type |
24-M16 |
|
|
Work table carrying capacity (kg) |
500 |
|
|
Maximum workpiece size rotation diameter (mm) |
Ф 750，H850 |
|
|
Tray exchange type |
Rotating type |
|
|
Tray exchange time (s) |
12 |
|
|
Number of pallets |
2 |
|
|
Maximum load torque of the work table (Nm) |
2250 |
|
|

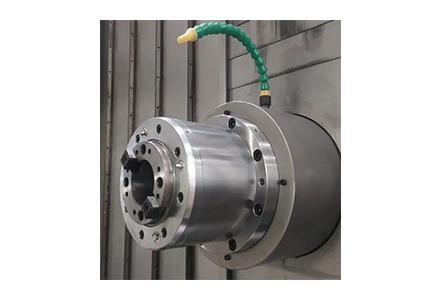

Spindle
|
Spindle speed （ r/min ） |
7000 |
|
Spindle power (kW) |
15/18.5 (FANUC), 17.5 (Siemens) |
|
|
Spindle torque (Nm) |
95.5/118 (FANUC), 96 (Siemens) |
|
|
Conical hole |
BT50 |
|
|
Spindle cooling |
Forced cooling |
|
|
Three-axis grating |
Optional selection |
|
|

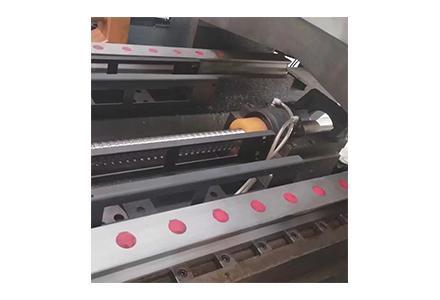

Feed
|
guide |
Roller linear guide rail |
|
Feed motor X/Y/Z (kW) |
7/7/7 (FANUC), 7.1/7.1/7.1 (Siemens) |
|
|
Fast feed rate X/Y/Z/B (m/min) |
36/36/36 |
|
|
Cutting feed rate X/Y/Z/B (mm/min) |
12000 |
|
|
Screw diameter X/Y/Z (mm) |
50/45/50 |
|
|
Cooling of screw bearings |
Forced cooling |
|
|
Three-axis grating |
Optional selection |
|
|

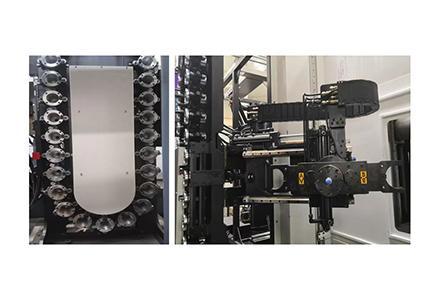

Tool
|
Number of tools accommodated (in pieces) |
40 |
|
Tools exchange method |
manipulator |
|
|
Tools selection method |
two-way |
|
|
Maximum weight of tools (kg) |
25 |
|
|
Maximum toolsdiameter (mm) (full blade/adjacent space) |
125/250 |
|
|
Maximum tool length (mm) |
350 |
|
|
Tool shank type |
BT50 |
|
|
Pull nail type |
P50T-1 |
|
|
Tool change time (T-T)/(C-C) (s) |
3.5/7.5 |
|
|
Accuracy
|
Positioning accuracy (mm) |
0.010 |
|
Positioning accuracy with grating ruler (mm) |
0.008 |
|
|
Repetitive positioning accuracy (mm) |
0.008 |
|
|
Repetitive positioning accuracy with grating ruler (mm) |
0.005 |
|
|
Work table indexing and positioning accuracy (") |
12 |
|
|
Repetitive indexing and positioning accuracy of the work table (") |
7 |
|
|
Other
|
Gas source (MPa) |
0. 6-0.8 |
|
Cutting fluid tank capacity (L) |
500 |
|
|
Power supply (kw) |
50 |
|
|
Machine tool dimensions (mm) (excluding chip conveyor, chip receiving vehicle, hydraulic station, etc.) |
5150X3845X2975 |
|
|
Machine tool weight (kg) |
20000 |
|
