The HMC800G horizontal machining center adopts a positive T-shaped structure, an integral base, a large-span double-layer wall column. The three axes are equipped with heavy-duty roller guides, endowing the whole machine with high structural rigidity. The machine tool utilizes a forced cooling system for the lead screw bearings and a forced cooling system for the belt-driven spindle, which effectively ensures the accuracy stability of the machine tool. This machine tool is capable of carrying out batch multi-sided machining for parts such as boxes, discs, plates, shells, and machine bases, and is also suitable for the finishing of various molds.

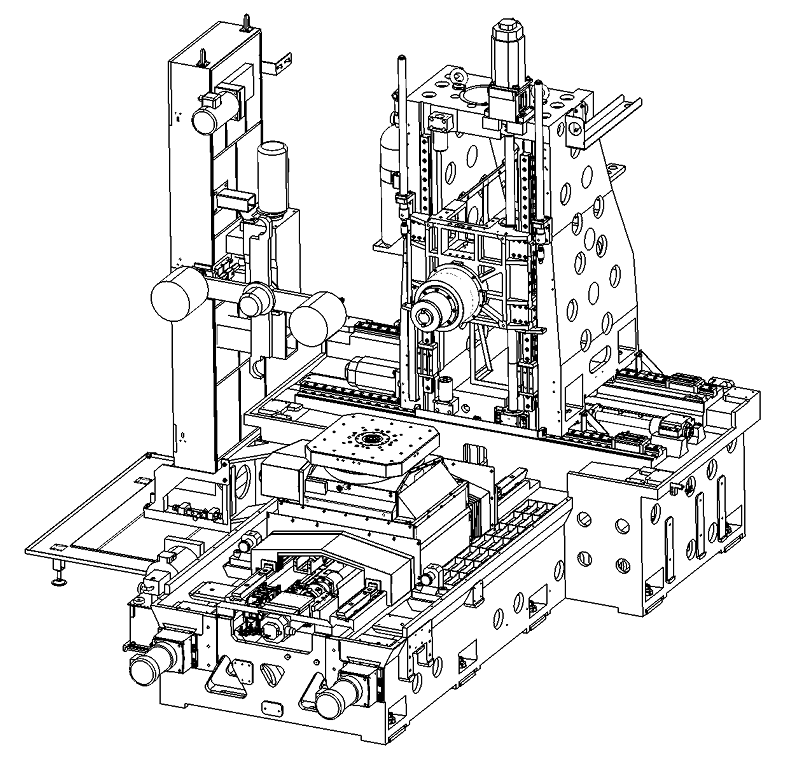

Bed and Main Structure: The whole machine features a positive T-shaped structure, a high-strength integral cast iron base, and a large-span column, which has excellent shock absorption performance and good accuracy retention. With a high-rigidity design, the main structures have undergone stress-strain and finite element analysis.
|
Item |
HMC800G |
|
|
Movement
|
X-axis（mm） |
1350 |
|
Y-axis（mm） |
1080 |
|
|
Z-axis（mm） |
1100 |
|
|
Distance from Spindle End to Worktable Center (mm) |
150-1250 |
|
|
Distance from Spindle Center to Top of Pallet (mm) |
95-1175 |
|
|
Worktable
|
Worktable Size (mm) |
800×800 |
|
Worktable Indexing (Deg) |
360×1° |
|
|
Worktable Load Capacity (kg) |
2000 |
|
|
Maximum Workpiece Size, Rotation Diameter (mm) |
Ф1300，H1300 |
|
|
Spindle
|
Spindle Speed (r/min) |
6000 |
|
Spindle Power (kW) |
22/26(FANUC)、22（SIEMENS） |
|
|
Spindle Torque (Nm) |
560/664（FANUC）、560（SIEMENS） |
|
|
Taper Hole |
BT50 |
|
|
Spindle Cooling |
Forced Cooling |
|
|
Spindle Cooling Water Outlet Form |
End Face Ring Spray, Optional: Center Water Outlet |
|
|
Feed
|
Guide Rails |
Roller Linear Guide Rails |
|
Feed Motor X/Y/Z (kW) |
7/7/7（FANUC）、7.1/7.1/7.1（SIEMENS） |
|
|
Rapid Feed Speed X/Y/Z （m/min） |
32/32/32 |
|
|
Cutting Feed Speed X/Y/Z （mm/min） |
12000 |
|
|
Lead Screw Diameter（mm） |
50/50/50 |
|
|
Tool
|
Tool Capacity (Number of Tools) |
40 |
|
Tool Change Method |
Mechanical Hand |
|
|
Tool Selection Method |
Bidirectional |
|
|
Maximum Tool Weight (kg) |
25 (The distance from the center of mass to the end face of the tool holder should be less than 100mm) |
|
|
Maximum Tool Diameter (Full Tool/Adjacent Empty) |
120/240 |
|
|
Maximum Tool Length （mm） |
400 |
|
|
Tool Holder Type |
BT50 |
|
|
Accuracy
|
Worktable Indexing Positioning Accuracy（arcsec） |
14 |
|
Worktable Repeat Indexing Positioning Accuracy（arcsec） |
8 |
|
|
Others
|
Numerical Control System |
FANUC 0i-MF(3) |
|
Air Source（MPa） |
0.6-0.8 |
|
|
Cutting Fluid Tank Capacity (L) |
600 |
|
|
Power Supply （kW） |
70 |
|
|
Overall Dimensions of Machine Tool (mm) (Excluding Foot Pedals, Chip Conveyor, Chip Collector, Hydraulic Station, etc.) |
5400×5200×3900 |
|
|
Machine Tool Weight (kg) |
23000 |
|
